Internal single doors

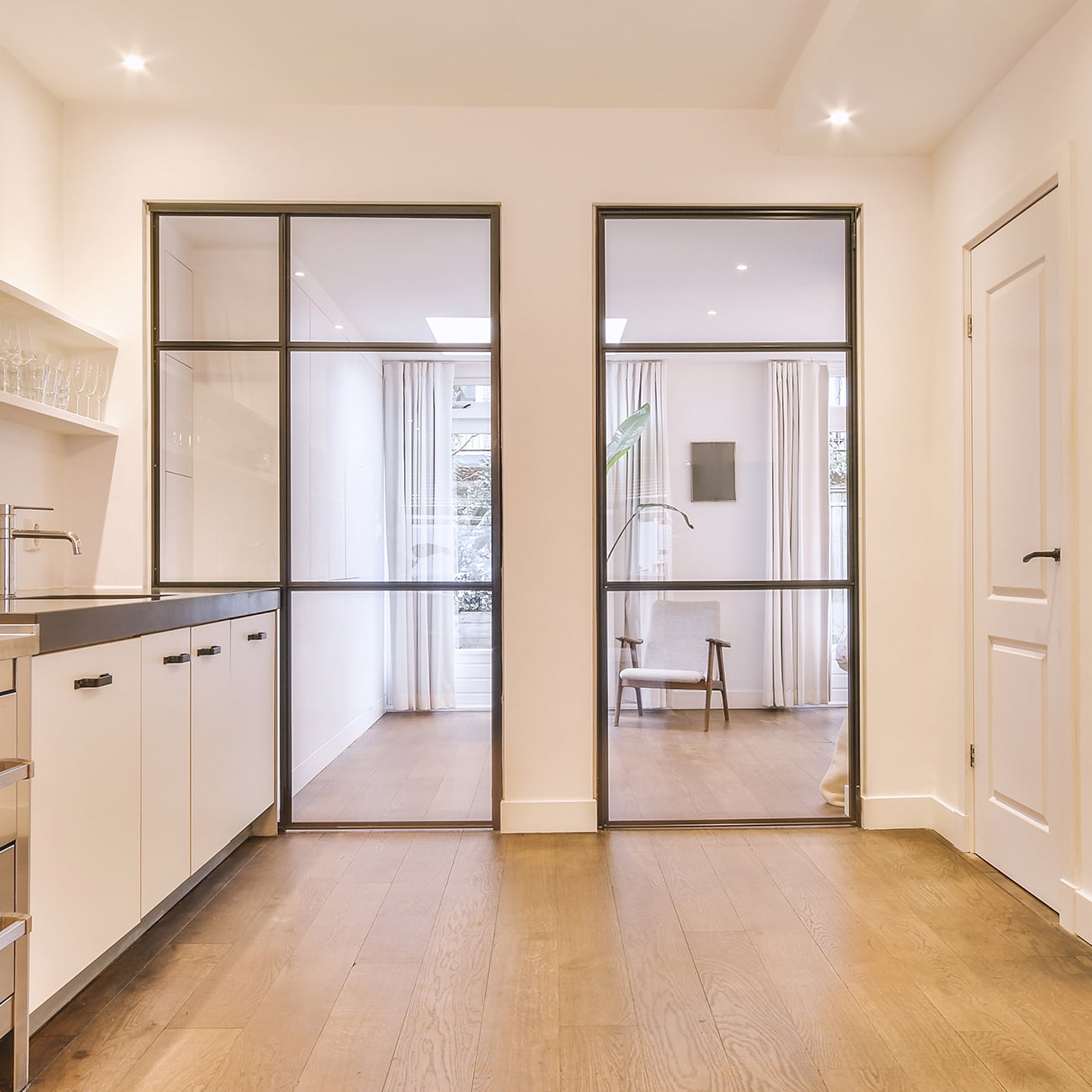

The most popular steel glazings are single-leaf loft doors. These doors feature a sturdy, durable construction comprising the door leaf and frame. They can either be installed independently within a door opening or integrated into larger industrial partitions.
Key Features:
- Sophisticated, modern design
- Crittall style doors that maximize the amount of natural light in the room
- Made from a top quality steel profile
- Very slim frames
- Each piece handmade to individual order
- Seamless welding
- Structural muntins enabling easy disassembly/replacement of glass
- Wide configuration possibilities
- Safety glass
- High load-bearing certified hinges
- Hinges welded into the structure
- Easy installation
Dimensions:
- Maximum width: 1200 mm*
- Maximum height: 2500 mm*
- Partition size: unlimited
* If you require a larger door leaf, please contact us.
Steel Profile:
Cross-section dimensions:
- Frame: 52 x 20 mm (profile wall thickness 2 mm)
- Door leaf frame: 40 x 20 mm (profile wall thickness 2 mm)
- Muntins: 15 x 15 mm (profile wall thickness 1.5 mm)
Pull-handles and handles:
- The range is wide and growing
- See available handles.
Glazing:
In our crittal doors and partitions, we only use safety glass:
- VSG (laminated)
- Decorative
Individual glass panels vary in transparency level and pattern.
Muntin bars:
- Structural muntins with a width of 15 mm, removable from one side, e.g., for glass replacement purposes.
- Unlimited number of possible muntin arrangements.
- Unlimited design possibilities.
Frame Colors:
- It is possible to use any color from the RAL palette.
- We use the highest quality powder coatings with a delicate structure, ensuring long-lasting color for years.

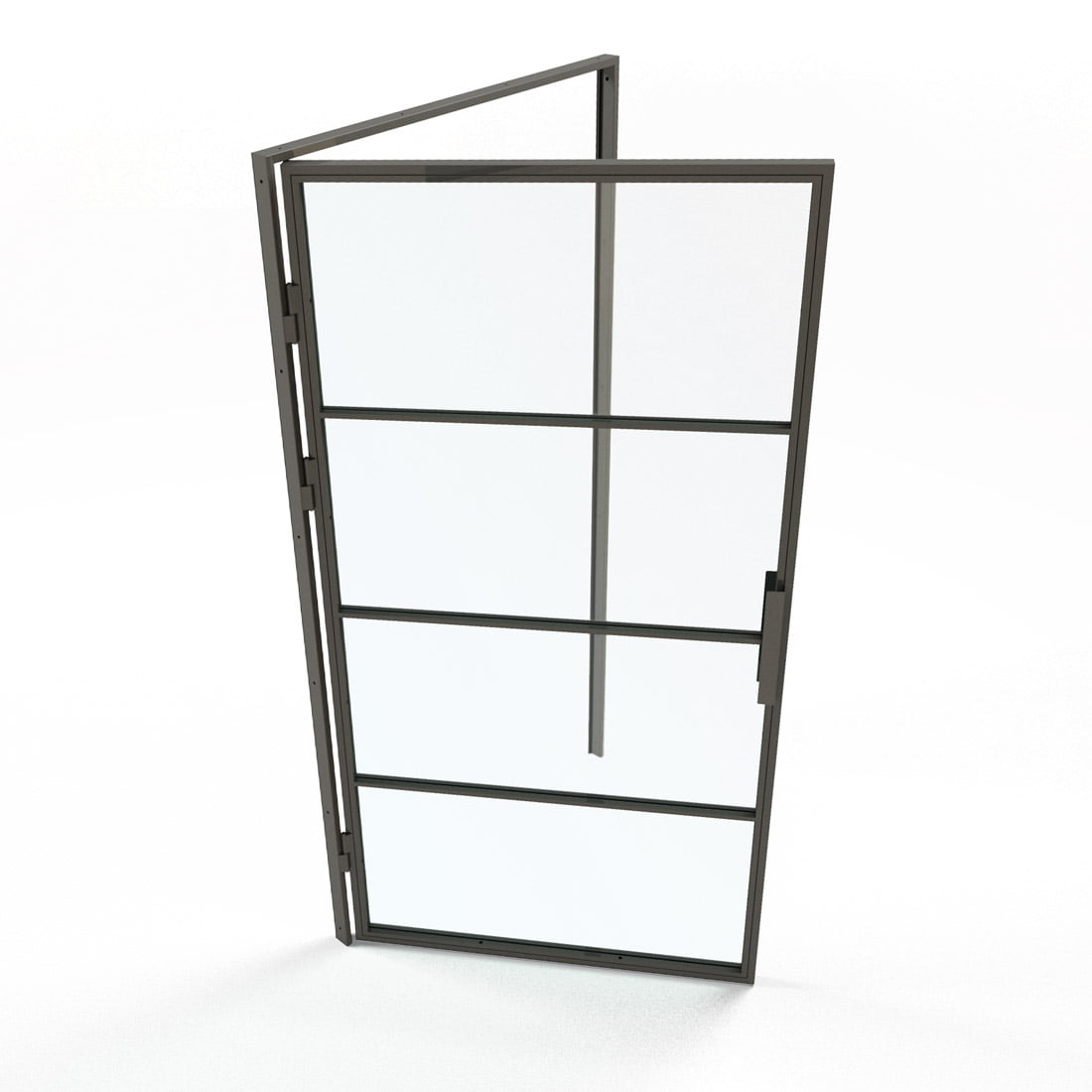

Robust, well-designed profile construction
Our construction is based on selected steel profiles with a wall thickness of 2 mm (for structural elements). The profiles are selected so that the structure is rigid and durable but visually „light” due to as slim frame as can be:
- Door leaf frame – only 37 mm (including muntins)
- Door frame – only 20 mm (on the hinge side) and 31 mm on the strike side

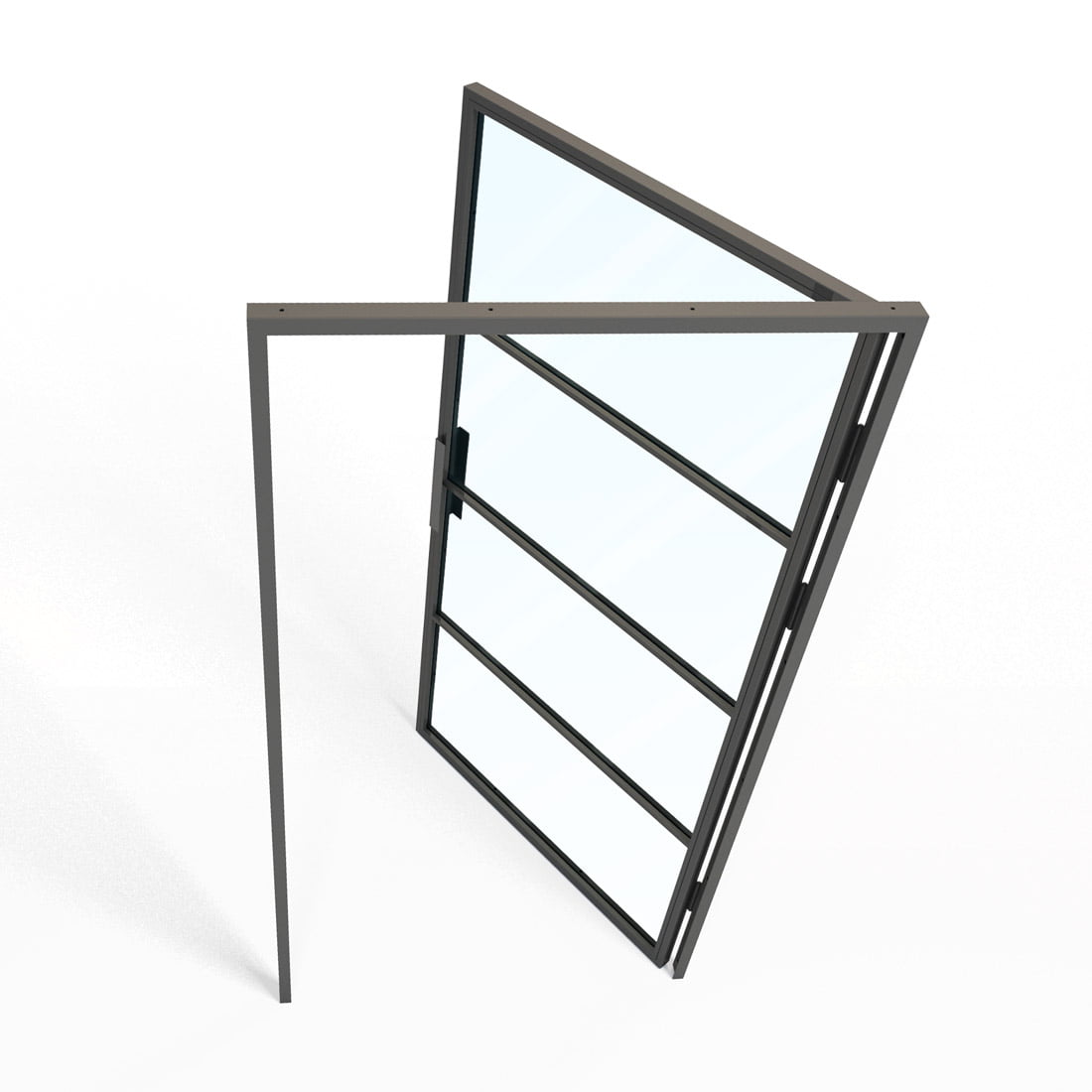

We use constructional muntins which are welded to the door frame on one side, further stiffening the entire structure. On the glazing side, the muntin can be easily removed . The mounting holes for the muntin bars are aesthetically concealed (no visible screws). Thanks to this design the replacement of glass is simple and possible to do even by the user.

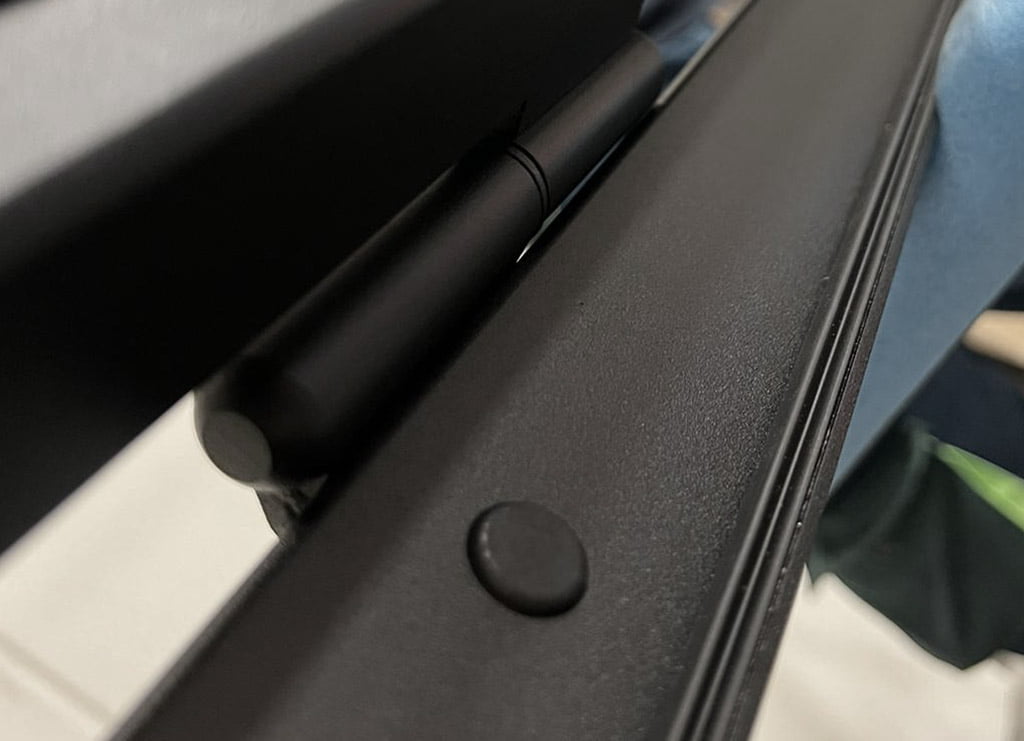

We only use strictly selected components: robust, certified (welded) hinges with high load-bearing capacity, locks, handles and all hardware used.

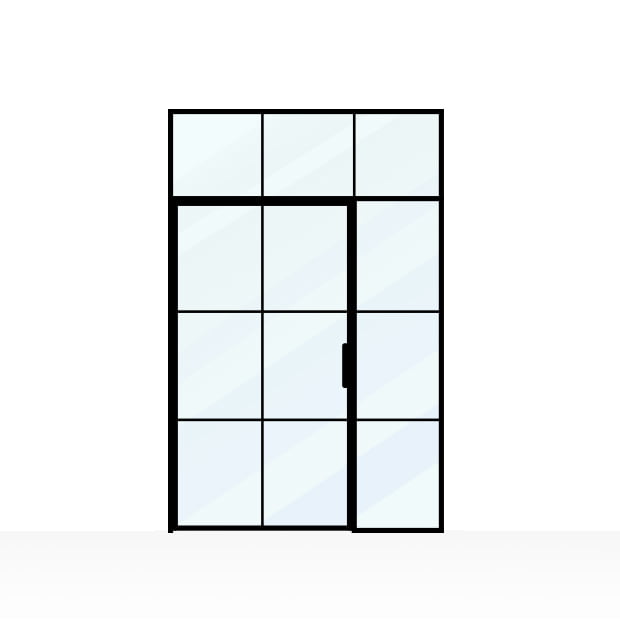

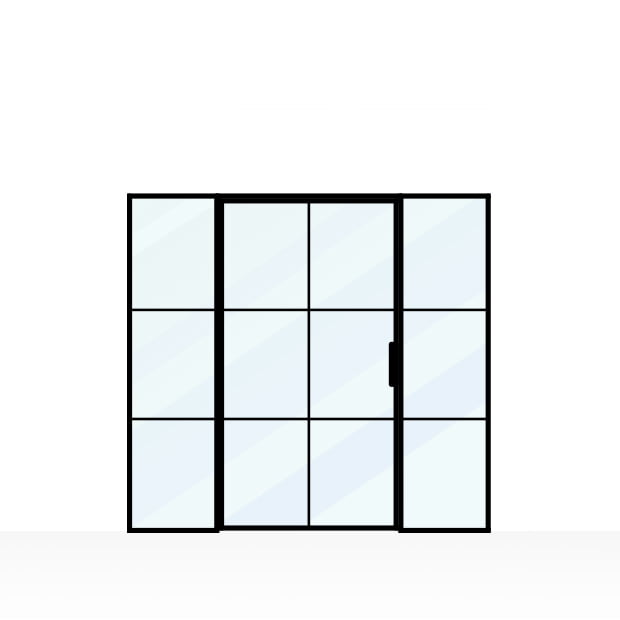

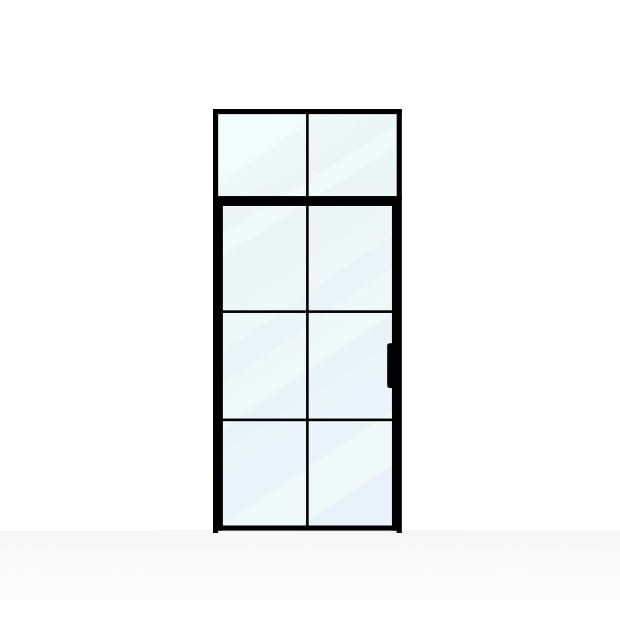

Check out the various designs we can create with single-leaf doors
The most popular muntin arrangements used in our glazings
Contact us. You can also rely on our designers and order a design (including visualisations) from us.
Explore the personalisation options for our steel doors and partitions
Handles / Pull handless
- Details
Simple pull-handle in short version
H: 160 mm x W: 38 mm x D: 24 mm
- Details
Simple pull-handle in medium (standard) version
H: 160 mm x W: 38 mm x D: 24 mm
- Details
Simple pull-handle in long version
H: 160 mm x W: 38 mm x D: 24 mm
- Details
Semi-circular pull-handle in small version
H: 100 mm x W: 50 mm x D: 24 mm
- Details
Semi-circular pull-handle in medium version
H: 160 mm x W: 80 mm x D: 24 mm
- Details

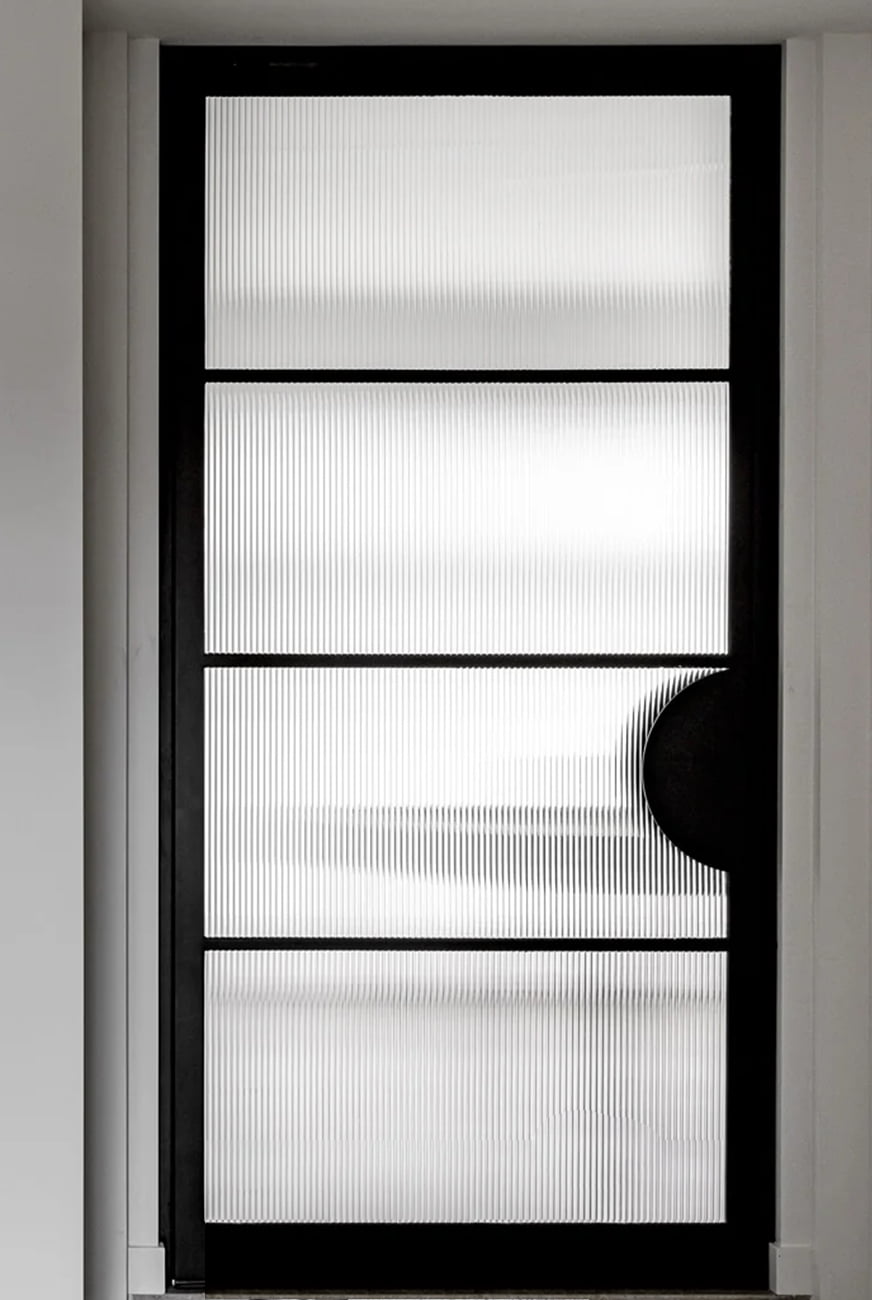

Semi-circular pull-handle in large version
H: 240 mm x W: 120 mm x D: 24 mm
Frame colour
All steel elements are powder coated with with top-quality paints with a matt finish and fine structure. This microstructure diffuses light, giving the door a noble appearance. We only use powder paints from the best manufacturers. They are applied by spraying and then heated in special ovens, which ensures a hard and durable coating for years.
Note: The colors shown may differ from the original due to monitor screen settings.
Wide glazing options
As standard, we use clear laminated glass (33.1 VSG) with a thickness of 6 mm.

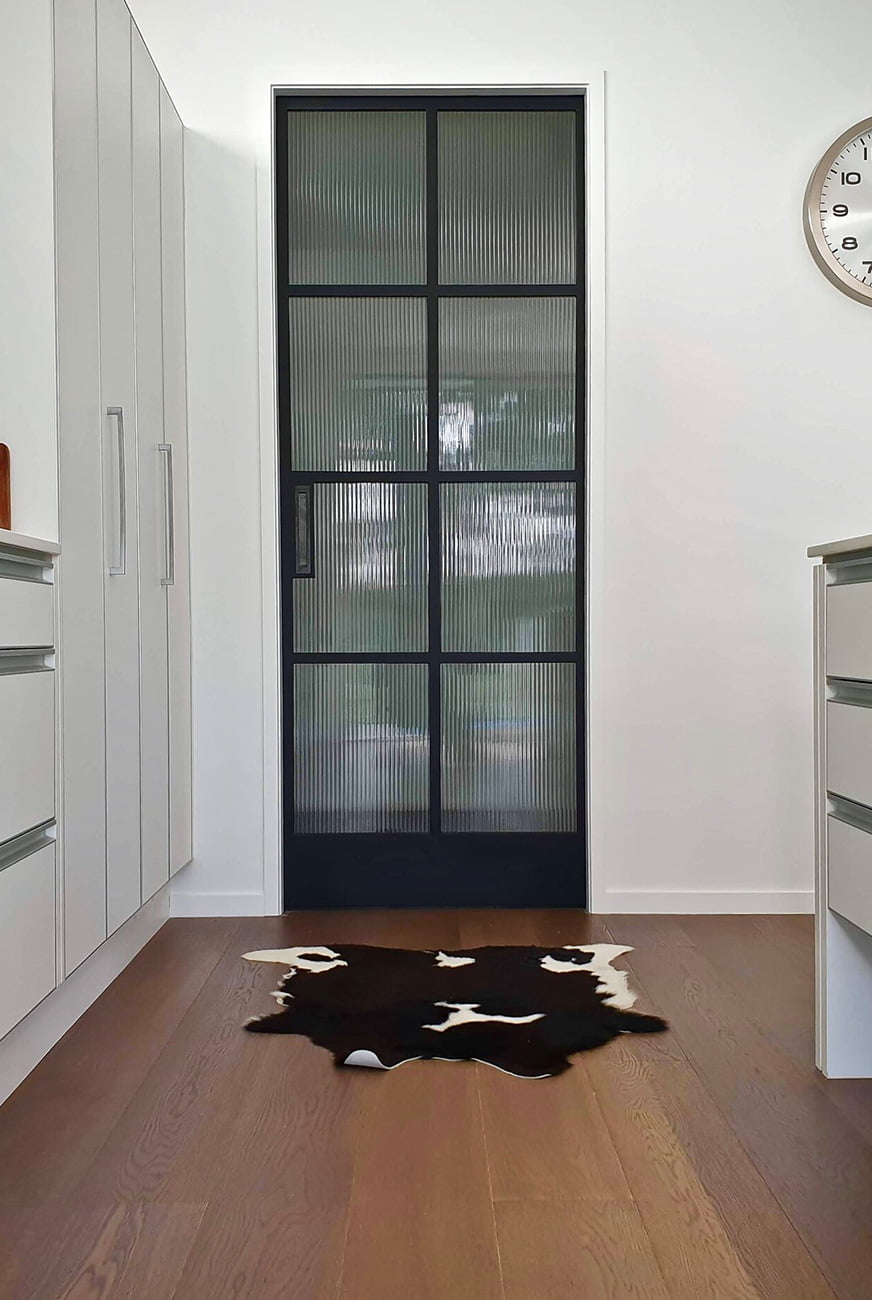

Our range of glazing is very large. You will find both plain glass (clear, matt, graphite) and decorative glass (fluted) with a stripe pattern to diffuse light and increase privacy.
For safety and durability, our doors and partitions are fitted only with laminated safety glass (VSG).
